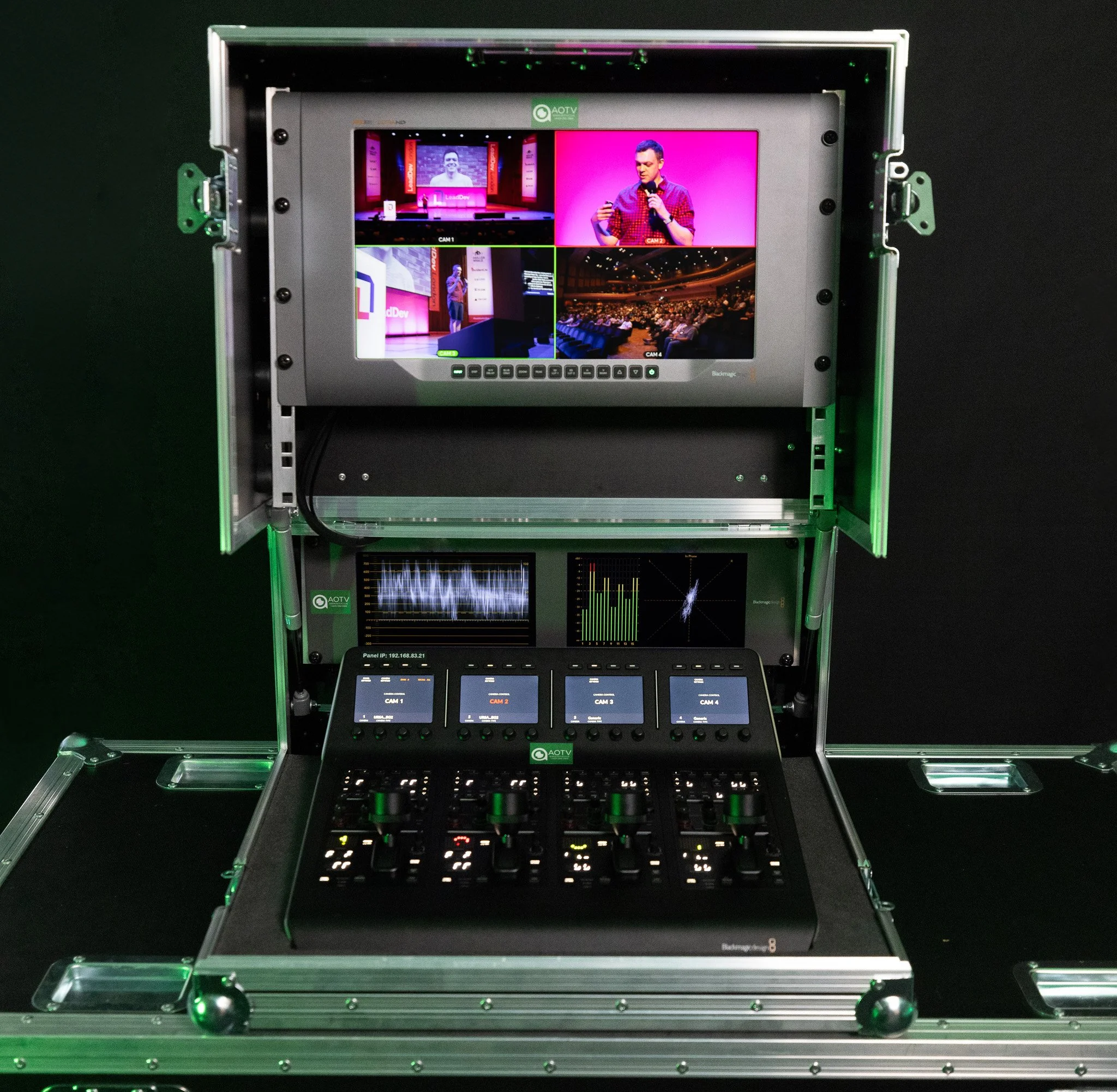

Portable Production Unit
The central hub of all things video
This complete package of 4K goodness is all ready to go. Fully scalable, featuring quick patches via SDI or SMPTE fibre, as well a fully 12G infrastructure, allowing you to output amazing quality video to multiple screens and multiple streams.
Featuring a BlackMagic Smartview, Audio Monitor, Mini PC, 40X40 Videohub, 2M/E ATEM Constellation and 6X Hyperdecks all networked together.
The 40X40 Videohub really lets you customise the unit to fit into any production. 6X Hyperdecks are fully patchable, so you can record your main mix to one, and then any key camera angles to the others.
Companion paired with a Streamdeck allows you to control everything from your seat, whether that’s routing cameras to screen, or monitoring available recording time.
A 2M/E Advanced Panel 20, mounted in a custom rolling case with 2X monitors is perfect for a fast-paced show. Allowing you to simultaneously mix for various outputs.
When operating in a live environment, anything can change in an instant, which is why a Camera Control Panel is there to colour-match cameras, compensate for lighting changes and making adjustments on the fly, Giving you a clean, balanced final result.
Here’s all the specs:
Main PPU Case:
Blackmagic SmartView 4K
Celerway 4G Router
Beelink 6 Core Ryzen5 5500U 4.0GHz Mini PC - Windows 11 Pro
Blackmagic Audio Monitor 12G
Blackmagic 40X40 Videohub 12G
Blackmagic ATEM 2M/E Constellation 4K
6X Blackmagic HyperDeck Studio 4k Pros
APC SMT1500RMI2U Smart-UPS 1500VA
2X Blackmagic Studio Fiber Converters
2X Blackmagic Micro Converters
TP-Link PoE Switch 16-port Gigabit
Elgato Streamdeck XL
Keyboard and Mouse
ATEM Advanced Panel 20 Case:
Blackmagic ATEM 2M/E Advanced Panel 20
2X Hannspree Monitors
2x Blackmagic Micro Converters
ATEM Camera Control Panel Case:
Blackmagic ATEM Camera Control Panel
Blackmagic SmartView 4K
Blackmagic Smartscope Duo 4K 2
(all accessories have cable bundles ready to plug in)
